Lumiflx 16 automated CLIA system

Lumiflx 16 is a fully automated immunoassay system, which adopts progressive chemiluminescence technology with self-developed bead separation system & intelligent single photon counting module. It features 2 reaction sections and 30 sample positions, allowing for quantitative analyses simultaneously with results in 15 minutes. Its quick turnaround time make it the ideal system in ambulances, cardiology, emergency, CPC, ICU, clinic, , field troops…


Product Detail

Product Tags

Description

Lab-quality results at the point of care with the speed that is needed for emergency patients. Make more timely assessments from a single sample, on a single run, on a single instrument. It features 2 reaction sections and 30 sample positions, allowing for quantitative analyses simultaneously with results in 15 minutes. The versatile magnetic bead separation technology is adopted to minimize interference and greatly improves the precision of detection (CV≤5%). Only 3-step operation and is ideal for all skill levels.

Product Features

1.Sample types: run whole blood/plasma/serum samples, no sample preparation, no manual dilutions
2.Rapid turnaround time: It can run 16 simultaneous tests in under 15 minutes, and up to 32 tests per hour.
3. On-demand testing: 1 patient, 1 test, 1 result, ready-to-use reagents.

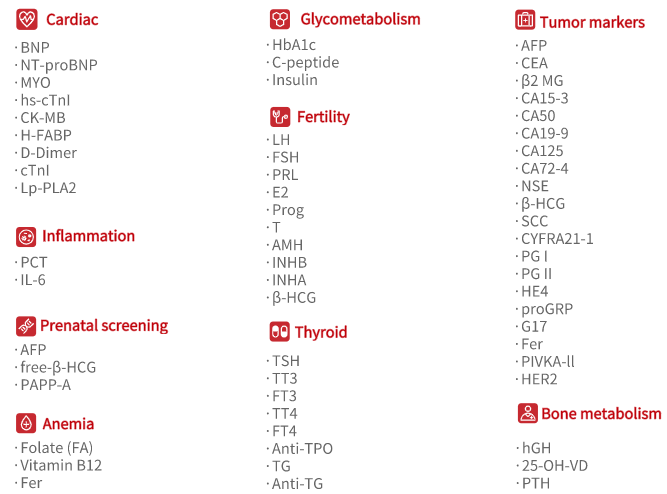

4. Broad menu: over 100 parameters available in single-test ready-to-use format.
5. Cost effective: no liquid, no consumable, no carryover, minimum maintenance.

Specifications

Measuring principle Chemiluminescence enzyme immunoassay technology (CLIA)
Throughput 64 T/H
Sample type whole blood/ serum/ plasma
Reaction temperature 37℃
Display 14'  touch screen
Electrical requirements AC100-240V
Reagent scanner Intergrated
Sample scanner Intergrated
Thermal printer Intergrated
Interface USB*2、RJ45
Dimension(W*D*H) 596*615*480mm
Weight 50kg

Product Description

The POCT CLIA System lumilite 8 is a quantitative and accurate immunoassay analysis system. It utilizes the ALP enzymatic cheminluminescence system which is easy to operate and fast to measure. It adopts self-developed versatile magnetic bead separation technology and intelligent single photon counting module to minimize interference and greatly improves the precision of detection.

Product Application

Lumiflx 16 can be widely used in cardiology, emergency, CPC, ICU, clinic...

Product Details

01

SDI

Software define immunoassay
Handle complicated workflow easily
Better adaptability than tranditional CLEIA system

02

VBS

Versatile bead separation
Automatic Pierce
Precise sample adding
Efficient bead separation
Magnetic beads mixing

03

AOI

Automatic optical inspection
Identify anomalies through the AI visual to guarantee the reliability of system

04

OTA

Over the air
​Remote maintenance and upgrade

05

ISPCM

Intelligent single photon counting module

06

Technology

Develpoed with newest technology
Wide linear
Low noise
Integrated Shutter
Built-in correction algorithm
